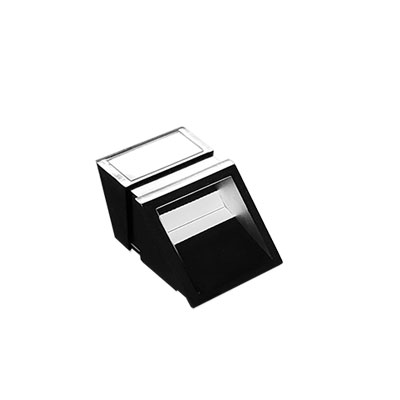

SecuGen U20-ASFX

The U20-ASFX is an advanced, stand-alone fingerprint recognition system that captures, processes, stores, and matches fingerprint data for identifying or verifying users. These are the flagship models of SecuGen’s Unity OEM Modules, which are a family of all-in-one, stand-alone fingerprint modules with complete biometric functionality built-in, designed to operate entirely without external host systems.

U20-ASFX

The U20-ASFX is an advanced, stand-alone fingerprint recognition system that captures, processes, stores, and matches fingerprint data for identifying or verifying users. These are the flagship models of SecuGen’s Unity OEM Modules, which are a family of all-in-one, stand-alone fingerprint modules with complete biometric functionality built-in, designed to operate entirely without external host systems.

With an ultra-compact and rugged design, the U20-ASFX OEM module can be integrated into access control units, door locks, ATMs, handheld devices, laptops, point of sale equipment, industrial equipment and many other kinds of products. It can also communicate with external devices and is interoperable with data input from SecuGen USB fingerprint readers for a wide variety of implementations.

The U20-ASFX consists of the SecuGen U20-A, an FBI-Certified FAP 20 fingerprint sensor, combined with a programmable Single-Board Computer (SBC) that includes onboard CPU, SDRAM, and flash memory. The U20-ASF is an updated version of the U20-SFR and is fully compatible with applications made for U20-SFR. The U20-ASFX is similar to the U20-ASF but with ten times more storage capacity than U20-ASF.

    • Rugged, high image quality fingerprint sensor that is both FBI Certified (PIV, FIPS 201, Mobile ID FAP 20 Compliant) and STQC Certified
    • Built upon patented technologies that allow rapid capture of high-contrast, low-distortion fingerprint images
    • Smart Capture ensures high quality imaging even from traditionally difficult fingerprints, such as dry or moist fingers, as well as under very bright conditions, such as outdoors in sunlight
    • Auto-On for automatic detection of a finger when placed on the sensor
    • Fingerprint Management System (FMS) software that works right out of the box
    • Open Linux OS that lets you develop custom applications running on the device
    • Large fingerprint template storage capacity and support for SG400, ISO/IEC 19794-2, and single view ANSI INCITS 378-2004 templates
    • NIST MINEX Certified and FIPS 201 Compliant embedded fingerprint algorithms for template generation and matching
    • High-speed fingerprint matching in verification mode (1:1) or identification mode (1:N, using built-in SecuSearch Engine
    • Serial (CMOS) interface for external I/O
    • Interoperable with data input from SecuGen USB fingerprint readers to support a wide variety of implementations
    • Responds to serial commands that use the same protocol supported by SecuGen’s SDA04P-series OEM modules
  • e-Government
  • Banking
  • e-Healthcare
  • e-Purse & Loyalty
Name (Product) U20-ASFX
Dimensions 250 mA max. (at 3.3V)
Weight 24 g
Certification FBI, PIV FAP 20, STQC
Sensor Type U20-A (contact)
Image Resolution 500 DPI
Platen Size 18.2 mm x 23.1 mm
Sensing Area 15.24 mm x 20.32 mm
Operating System Linux Kernel 3.10.14
Image Gray Scale 256 levels (8-bit)
Template Capacity 20,000
Current Consumption (max) 250 mA max. (at 3.3V)
Water Resistance Available (applied to optic module)
